Waveshare High-Precision AD HAT for Raspberry Pi, ADS1263 10-Ch 32-bit ADC, GPIO Connectivity

Overview High-Precision AD HAT For Raspberry Pi, ADS1263 10-Ch 32-Bit ADC Function 1.HIGH-PRECISION AD HAT Compatible With Raspberry Pi Series And Jetson Nano,Enable High Precision AD Conversion Capability For Your Raspberry Pi 2.ADS1263 Onboard 10-Ch 32-Bit High Precision ADC 3.AD Input Headers For Connecting Sorts Of Analog Sensor Modules, Compatible With Waveshare Sensor Pinout 4.AD Input Screw Terminal For Connecting Analog Signal And Analog Power Supply, General Purpose Specifications RESOLUTION:32 Bits SAMPLING RATE (MAX):38.4 kSPS BUS:SPI INPUT TYPE:differential, single-end INPUT VOLTAGE RANGE (MAX):2.5V, 5V INPUT CHANNELS:10 PGA MAGNIFICATION (MAX):32 STRUCTURE:Delta-Sigma REFERENCE VOLTAGE:internal, external INPUT VOLTAGE RANGE (MIN):-2.5V, 0V Package Content High-Precision AD HAT x1 RPi screws pack (2PCS) x1 Note aspberry Pi and Jetson Nano are NOT included. Development Resources are provided，please contact with us via buyer message to get.

• Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
• Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules

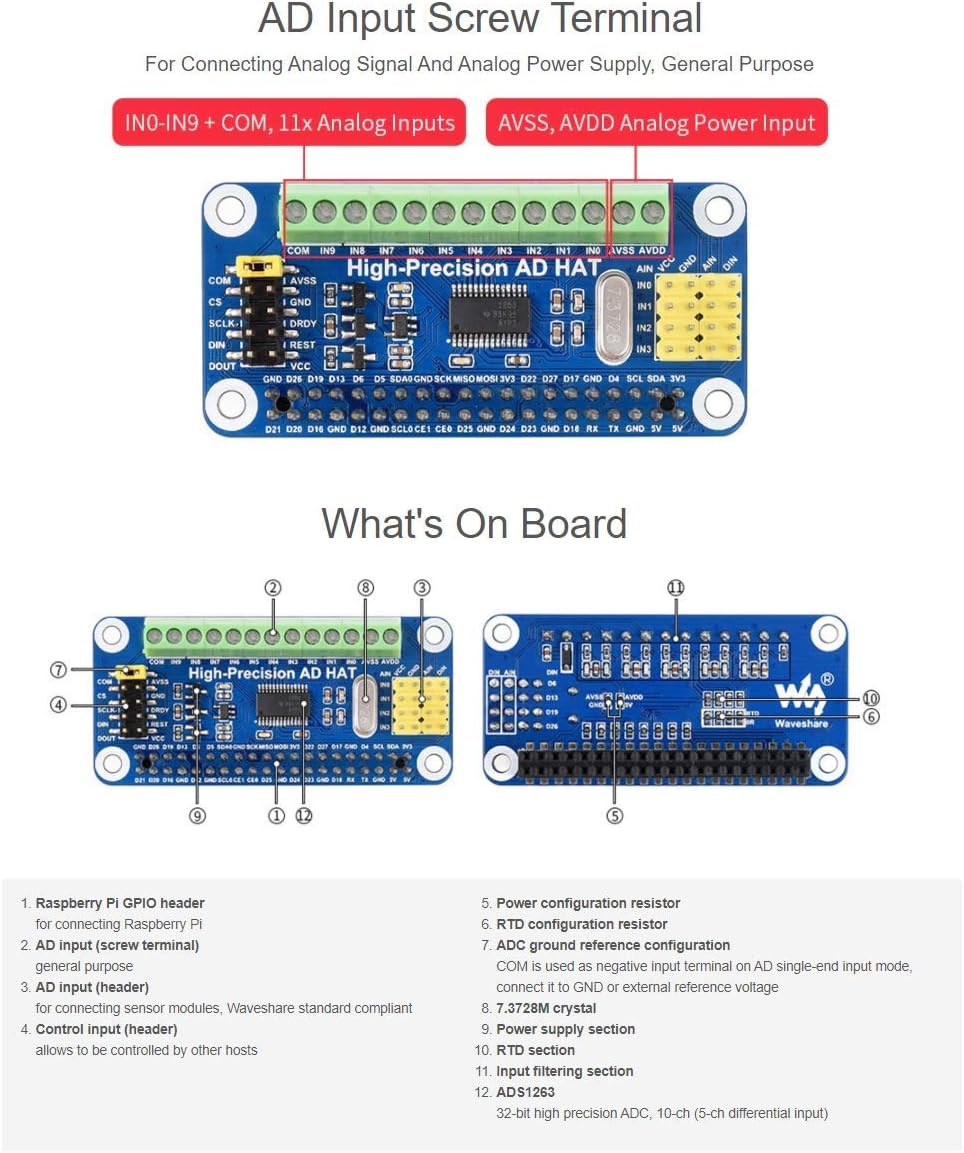

• Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
• Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
• Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
