waveshare 7inch IPS Capacitive Touch Display 1024x600 Pixel, Integrated Thin and Light LCD with Adapter Board, for Raspberry Pi/Jetson Nano/Windows/PC, Support Windows/Linux/Android

Overview This 7inch Capacitive Touch IPS Integrated Display is for customers who need a lightweight HDMI display.As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily.For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects. Feature 7 inch IPS Capacitive Touch screen, 1024 x 600 hardware resolution. 170°Wide Viewing Angle. COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano. Device & System Support:Support Windows / Linux / Android main board which has HDMI signal and USB touch signal Support backlight control, more power saving. 5-Point Capacitive Touch: Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touch. Application Scenarios： New energy, electronic sentinel, human-machine interface, smart home IoT, Industrial applications, consumer electronics Package Content 7inch Capacitive Touch IPS Display x1 FPC cable (~ 15cm) x1 Development Board Accessories Notice: 1.Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system. 2.Insufficient power supply of the USB interface of some PCs will cause the LCD screen to flicker, which can be restored to normal use after connecting to an external 5V/1A power supply.

• 7inch IPS Capacitive Touch Display, 1024 x 600 hardware resolution. Integrated Structure, Thin and Light Screen Design. 170°Wide Viewing Angle. 5-Point Capacitive Touch: Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation.Adapting touch function with USB signal, support 5-point touch. Support backlight control, more power saving.
• Integrated Structure Design: Provide secondary development resources to facilitate integrated design, Boost simple development for embedding engineering applications quickly.

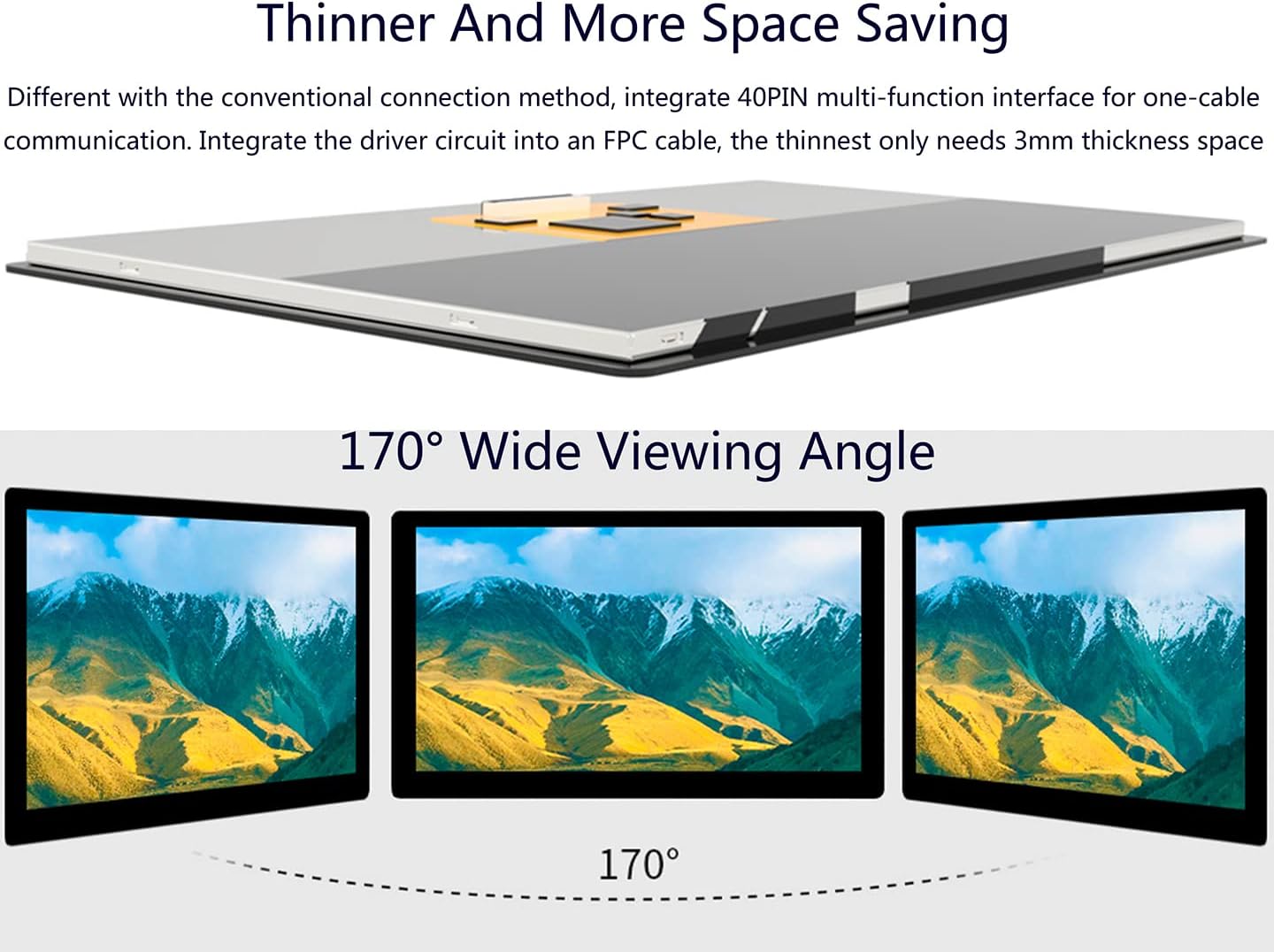

• Thinner and more space saving： Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space.
• Support Device & System: Support Windows / Linux / Android main board which has HDMI signal and USB touch signal. High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi (PI 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W), PC, and Jetson nano.
• Online Guide/Development Resources: waveshare.com/wiki/70H-1024600?Amazon
