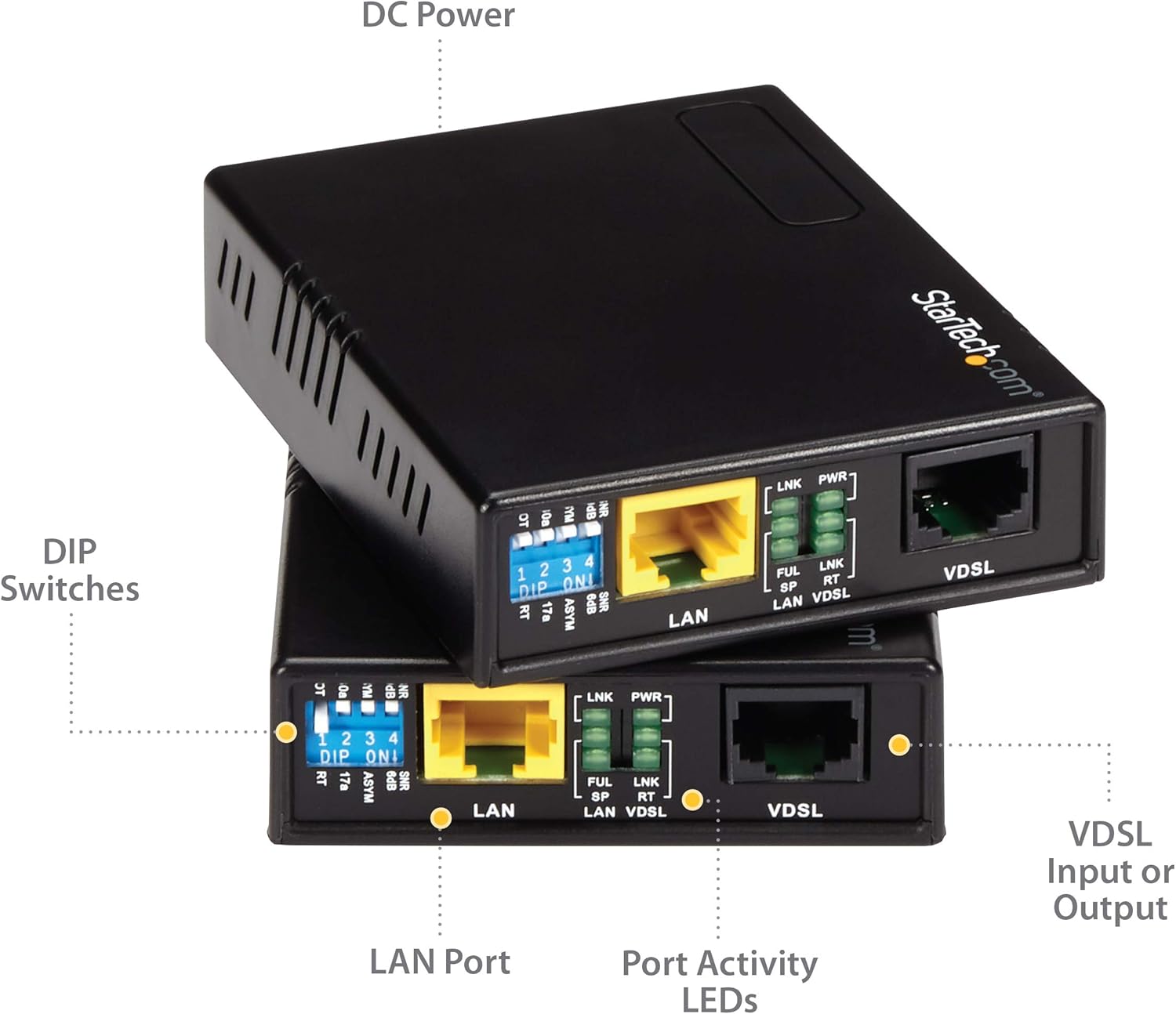

StarTech.com 10/100 VDSL2 Ethernet Extender Kit Over Single Pair Wire, Long Range Repeater, Replaced by VDSL-LAN-EXTENDER-1G

IEEE 802.1Q VLAN tag transparent Selectable CPE and CO mode via DIP switch Supports flow control for Fast Ethernet (pause frame or Back Pressure) Allows you the ability to select fixed SNR margin (9 dB) or fixed target data rate Light in weight and a very compact design Supports both symmetric and asymmetric transmission The 110VDSLEXT VDSL Ethernet extender kit lets you span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity, allowing you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included. A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference. Solution Diagrams: Backed by a StarTech.com 2-year warranty and free lifetime technical support. Provide ethernet over copper connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether Extend network connectivity to remote areas of stadiums, auditoriums or other venues Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications Remote sensor monitoring for traffic flow management (air traffic control, expressway flow) Provides high speed Ethernet extension over copper telephone line or other existing two pair wiring enabling network connectivity to remote locations up to 1km away Allows network connectivity in buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless are impossible Simple Plug and play installation with no software or driver installation for a hassle-free setup Specifications Warranty Information Warranty 2 Years Connector(s) 2 - Local Unit Connectors RJ-45 2 - Remote Unit Connectors RJ-45 Environmental Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature 0°C to 70°C (32°F to 158°F) Humidity 10~90% RH Hardware Industry Standards IEEE 802.3/802.3u/802.3x 10/100 Base-T Auto-Negotiation, Auto-MDI/MDI-X On-board surge protection VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2/VDSL ITU-T G.997.1 compliant Indicators 3 - LED Indicators LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex VDSL: Power On/Off, CO/CPE, Idle/Trained/Link Packaging Information Package Height 5.2 in [13.3 cm] Package Length 6.0 in [15.3 cm] Shipping (Package) Weight 24.6 oz [696 g] Package Width 7.2 in [18.3 cm] Performance Maximum Data Transfer Rate 0m - 100Mbit/s 300m - 75Mbit/s 1km - 10Mbit/s Max Distance 1 km (0.6 mi) Physical Characteristics Weight of Product 6.1 oz [173 g] Color Black Product Length 3.7 in [95 mm] Product Width 2.8 in [72 mm] Product Height 0.9 in [22 mm] Power Power Source 2 AC Adapters Included Output Voltage 12V DC Output Current 1A Center Tip Polarity Positive Plug Type M Special Notes / Requirements Note You have the ability to use up to four sets over a single Cat5e or Cat6 cable which can be used as separate LAN (or VLAN) connections, or bridged into a trunk line for additional speed/bandwidth over long distances (Up to two sets only over standard Cat5). What's in the Box 1 - Included in Package Ethernet VDSL Extender Ethernet VDSL Receiver Instruction Manual 2 - Included in Package RJ-45 to VDSL Cable Power Adapter

• LONG RANGE CONNECTIVITY: The ethernet extender over phone line kit lets you span a 10/100 network over up to 1km while still maintaining high-speed network connectivity.
• USE EXISTING CABLING: Featuring a convenient set-up, this DSL ethernet extender kit enables you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires.
• REDUCE UPGRADING COSTS: The VDSL2 ethernet extender helps eliminate expensive hardware upgrading costs by allowing video streaming and data to share the same telephone pair without interference.
• VERSATILE USE: Providing a broad range of applications, this VDSL ethernet extender over copper can connect isolated user stations within the same building or between separate buildings.
