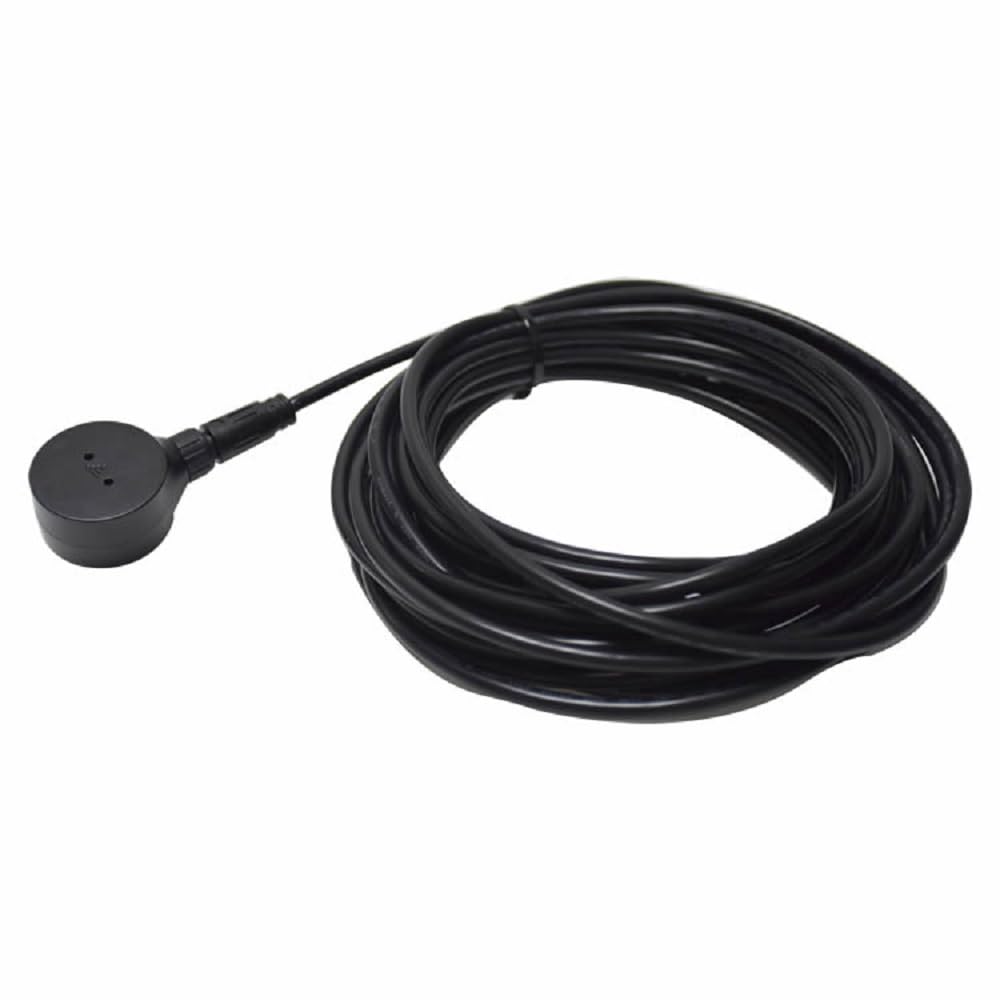

Non-Contact Ultrasonic Fuel Level Sensor – Universal Fuel Gauge Compatible with Diesel, Gasoline, Water – IP68 Waterproof, No Drilling Required

Power Supply: 9–36V DC Max Power Consumption: 0.7W @12V DC Measuring Range: 3–250cm Resolution: 0.1mm Accuracy: 99.5% (0# diesel or 95# gasoline at 25°C) Max Tank Thickness: <12mm Cable Length: 9 meters Working Temperature: -40°C to 85°C Working Humidity: 5–99% Waterproof Rating: IP68 Explosion-Proof Class: Exd II CT5 Universal Fit: Compatible with all brands of fuel gauges and works with virtually any liquid and tank material—metal, aluminum, stainless steel, fiber, or plastic. No Drilling Required: Simple installation from the bottom of the tank eliminates the need for modifications or holes. Exceptional Accuracy: Achieves 99.5% accuracy with 0.1mm resolution, ensuring precise fuel level readings. Wide Measuring Range: Detects levels from 3cm to 250cm with a blind zone of only 3cm. Robust Design: Built to withstand harsh environments with an IP68 waterproof rating, explosion-proof certification (Exd II CT5), and operation from -40°C to 85°C. Smart Technology: Configure and calibrate effortlessly via a mobile app. The built-in AI algorithm filters out interference for consistent and reliable performance. Low Power Consumption: Consumes only 0.7W at 12V DC, making it energy-efficient and suitable for vehicles and storage tanks.

• Universal Compatibility: Works with all fuel gauge brands and supports various liquids including diesel, gasoline, water, and more. No need to replace your fuel gauge
• Non-Contact & Easy Installation: Mounts at the bottom of the tank without drilling. Suitable for metal, aluminum, stainless steel, fiber, and plastic tanks
• Works with all liquids (diesel, gasoline, water, etc.) and integrates seamlessly with any fuel gauge brand. Its programmable ohm signal output ensures accurate, real-time data transfer without contact
• Resolution: 0.1mm, Accuracy: 99.5%, Maximum Measuring Range: 100cm, Lowest Detection Hight(Blind Area): 3cm, Maximum Tank Thickness: 8-12mm, Mobile App configuration &Calibration, Built-in AI Algorithm to filter abnormal signal, IP68 waterproof
• Power Supply: 9~36V DC, Max Power Consumption: 0.7W @12V DC, Measuring Range: 3-100cm, Extension Cable: 9 meters, Working Temperature -40 to 85℃ (@1 ATM), Working Humid: 5 to 99%, Explosion-proof Class: Exd II CT5
