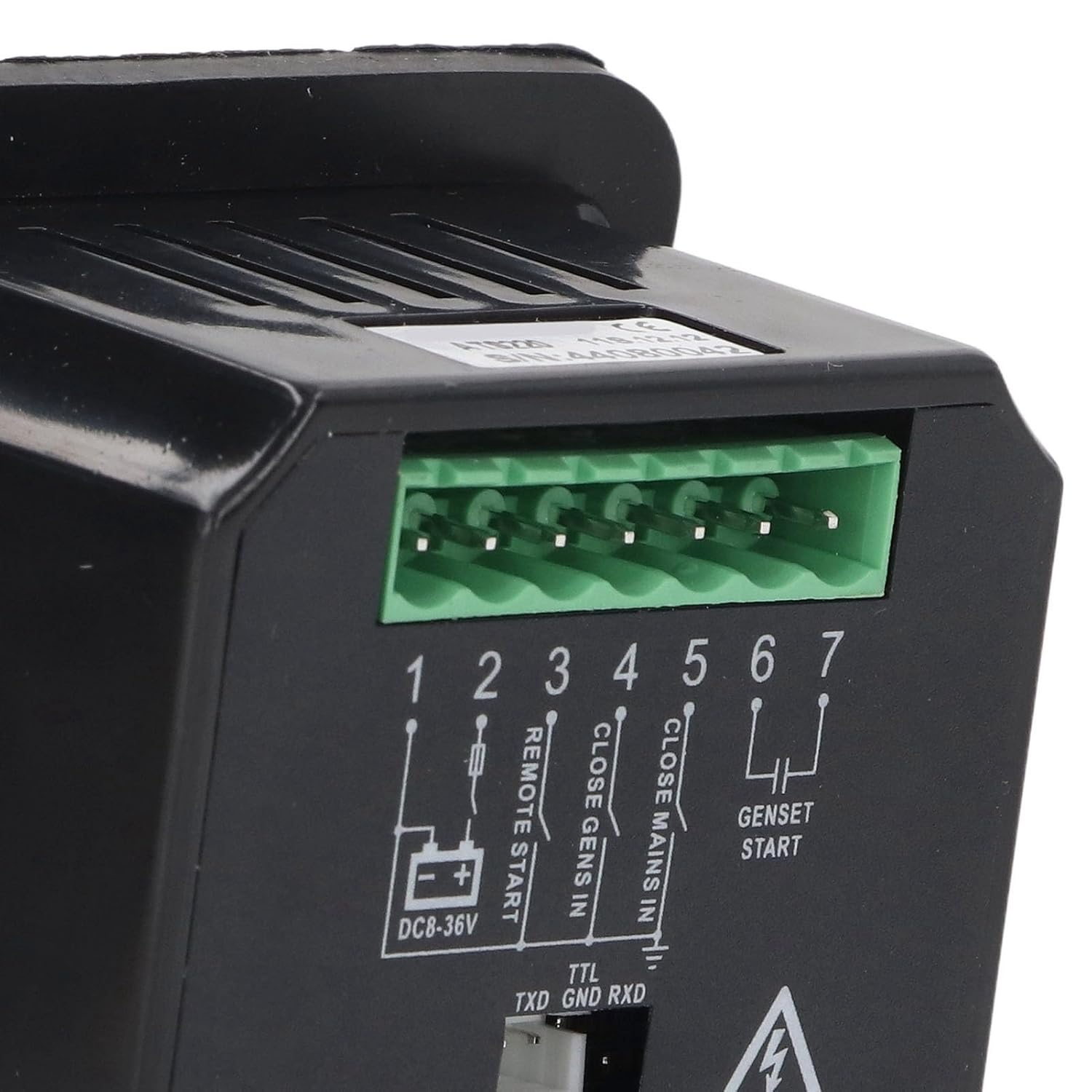

Automatic Transfer Switch ATS Controller 30-300V for Generator Power Switching
Product details
| Management number | 210751661 | Release Date | 2026/04/02 | List Price | $24.04 | Model Number | 210751661 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Item Type: Automatic Transfer Switch ControllerModel: ATS220Material: ABSFunction: For power switching control. Display: LEDPower Generation and Mains Voltage: 30-300VNormal Mains Power Delay: 0-6500s, Default Value: 10s. Abnormal Mains Power Delay: 0-6500s, Default Value: 5s. Normal Power Generation Delay: 0-6500s, Default Value: 10s. Start Up Delay Of Generator Set: 0-6500s, Default Value: 1s. Shutdown Delay Of Generator Set: 0-6500s, Default Value: 5s. Closing and Opening Pulse Width: 1.0-10.0s, Default Value: 10.0s. Conversion Interval Delay: 0-3600.0s, Default Value: 1.0s. Overconversion Delay: 0-20s, Default Value: 20s. Low Voltage Tripping Value of Mains Supply: 55-330V, Default Value: 184V. Low Voltage Return Value of Mains Power: 55-330V, Default Value: 207V. Mains High Voltage Tripping Value: 55-330V, Default Value: 276V. High Voltage Return Value of Mains Power: 55-330V, Default Value: 253V. Generator Over Frequency Alarm Value: 40-80.0Hz, Default Value: 57.0Hz. Generator Underfrequency Alarm Value: 0-70.0Hz, Default Value: 40.0Hz. Generator Overvoltage Alarm Value: 0-360V, Default Value: 264V. Generator Undervoltage Alarm Value: 0-360V, Default Value: 192V. Enabled Closing Status Input: 0 - DisableMains Voltage Indication: The indication is currently displayed as mains voltage E. When the load is switched to mains voltage, the mains voltage will be automatically displayed. Mains Frequency Indication: The indication is the current displayed parameter value is mains frequency. Generation Voltage Indication: The indication is currently displayed as generation voltage. When the negative line is switched to generation, the generation voltage will be automatically displayed.Generation Frequency Indication: The indication is the current displayed parameter value is the generation frequency. Mains Power Status
- Display: LED screen shows voltage and frequency for easy system monitoring.
- Automation: This transfer switch automatically switches between power sources.
- Voltage Range: Controller works with 30 to 300V systems for wide compatibility.
- Protection: IP54 rated enclosure protects against dust and water exposure.
- Installation: Modular design with terminal blocks simplifies setup process.
| Color | Black |
|---|---|
| Model | LiebeWHk6hyxirouw |
| Terminal | Screw |
| Brand Name | LiebeWH |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | LiebeWH |
| Actuator Type | Rotary |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Item Type Name | Transfer Switches |
| Operation Mode | Automatic |
| Controller Type | Ring |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 300 Volts |
| Specification Met | Ip54 |
| Number of Positions | 1 |
| Connectivity Protocol | Wi-Fi |
| International Protection Rating | IP54 |
