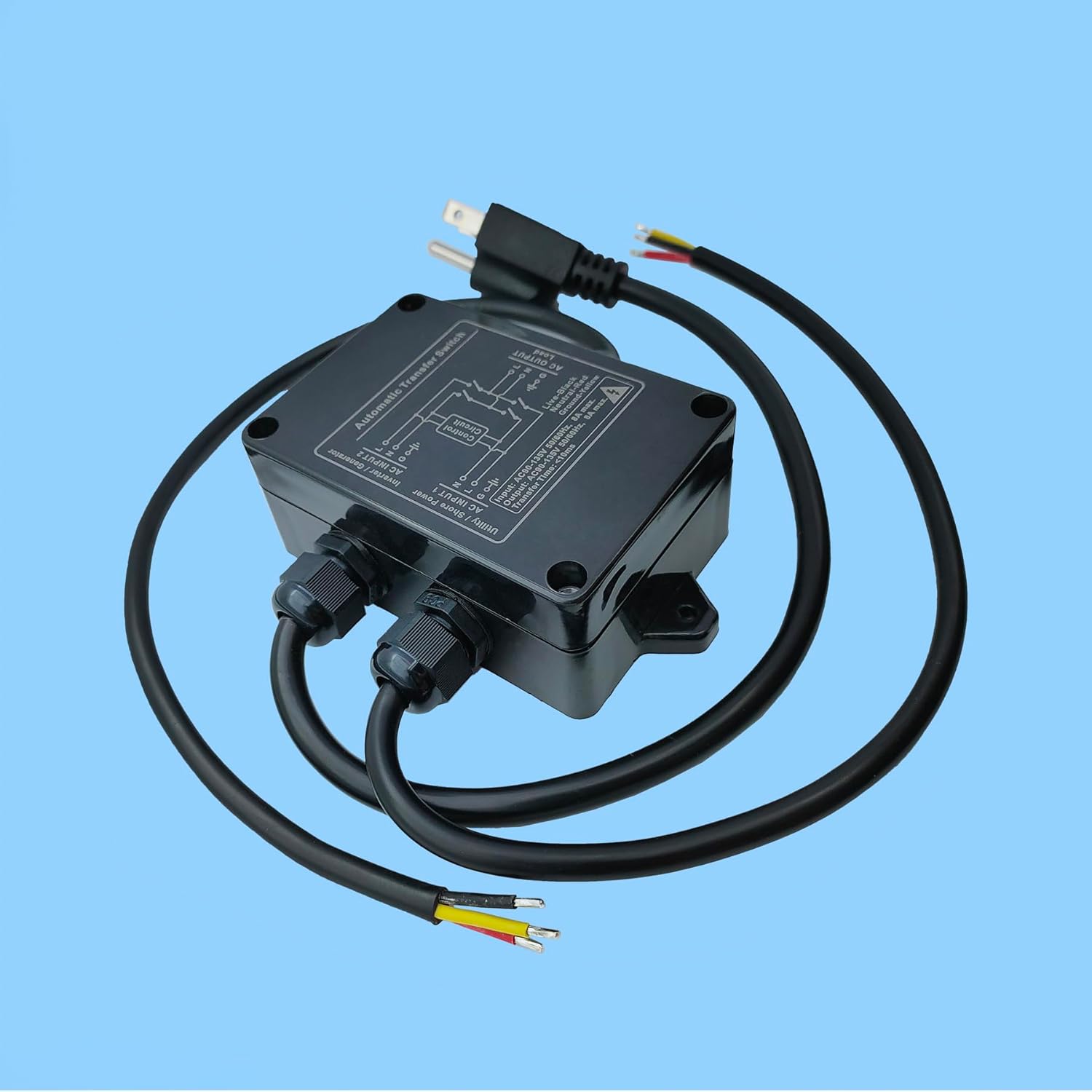

ATS AC 120V Auto Transfer Switch,Automatic Transfer Switch，for Emergency Lights, Water Pumps, Monitoring, etc(bicut AC).
Product details
| Management number | 210751693 | Release Date | 2026/04/02 | List Price | $21.60 | Model Number | 210751693 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Parameters:Product name: Automatic transfer switchWorking voltage: AC 90 - 135VWire length: 40cmRated current: 5AMaximum value: 8A.Transfer time : <10msMaterial : PA66Waterproof rating : IP68Fire rating : UL 94-V0Operating Temperature : -45℃~+75℃【Product Packing】: 1*AC automatic transmission switch (40cm)[Wide Application]: For alarms, incubators, solar lights, surveillance cameras, water pumps, emergency lights, engineering monitoring equipment and communication systems, this power transfer switch meets diversified needs.【Tips】: follow the wiring diagram on the device to wire, please make sure the wiring is correct before use, otherwise it may damage the controller or the device.
- 【Voltage】:Operating voltage AC 90 to 135V 50/60Hz. 8 amps maximum current. Transmission time is less than 10 milliseconds (0.01 seconds). For most smart devices or computers, a switching time of 10 milliseconds will not affect normal operation
- 【Input】The Dual Power Automatic Transfer Switch has an 8Amp in-line transfer relay that switches between AC Input 1 (utility or shore power) and AC Input 2 (inverter or generator). When AC Input 1 is powered, the load power will switch to AC Input 1. When AC Input 1 is turned off, the load power will switch to AC Input 2
- 【Performance】: IP68 high-grade waterproof case for indoor or outdoor use. Flame retardant. Case Material: PC (Polycarbonate). Sealing material: Silicone rubber
- 【Power】:Automatic transfer switch designed by high power relays, effectively avoiding the problem of relay arcing with high inductive loads. With wire and neutral switching at the same time. The ground wires of both inputs and outputs are connected together internally and do not follow the switch on/off
- 【Dimensions】:AC Input 1 Cable: 15.7 inch (40 CM) length 3-conductor sheathed wire with 5 mm tin at the end. AC Input 2 Cable: 15.7 inch (40 CM) length with 3-prong plug. Output Cable: 15.7 inch (40 cm) length, 3-conductor jacketed wire with 5 mm tin on the end
- 【Widely Used】: For alarms, incubators, solar lights, surveillance cameras, water pumps, emergency lights, engineering monitoring equipment and communication systems, this power transfer switch meets diversified needs
- 【Tips】: Do not overload the unit, and follow the instructions for wiring before connecting, otherwise there may be a risk of burning or damaging the unit
- Tip: The ATS automatic transfer switch has been glued, please do not disassemble it. It is not waterproof after disassembly
| Model | 7903ed6e-6049-45d6-a266-dc08580c9754 |
|---|---|
| Wattage | 550 watts |
| Terminal | Through Hole |
| Brand Name | RPTCOTU |
| Unit Count | 1.0 Count |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | RPTCOTU |
| Material Type | Copper |
| Mounting Type | Wall Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 8 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 1.18 x 0.79 x 0.39 inches |
| Contact Material | Copper |
| Operating Voltage | 110 Volts |
| Specification Met | Ul, Ip68, Ul 94-v0 |
| Included Components | 1 |
| Number of Positions | 1 |
| Warranty Description | NO |
| Upper Temperature Rating | 80 Degrees Celsius |
| International Protection Rating | IP67 |
